Quick answer: an under bed storage box is built through one of two production routes, and the route determines the whole quality conversation. A rigid unit is moulded, trimmed, drilled and fitted with a lid and handle in a four-step sequence. An expandable or fabric unit is cut, sewn, assembled onto a frame and fitted with wheels. A standard run takes 35 to 40 days after sample approval, and the two stages where quality actually fails are the handle root and the frame corner joint.
Buyers who have sourced under-bed storage before usually arrive with one specific question: what can I write into the purchase order so that a defect cannot reach the customer? This guide walks through both production routes, names the failure points we see, and lists the specification items that prevent them.
It is written for importers and sourcing managers who need to run a compliant inspection, not for a general reader looking for storage tips.
A rigid low-profile box is a moulded part with a fitted lid. The sequence is short, but each step has a measurable output.
The shell is injection moulded in a single shot. The critical parameters are the resin grade, the cooling time and the wall thickness. Wall thickness is where most of the strength sits, and it is the specification most often left vague. A thinner wall saves resin cost and produces a lid that bows the first time the box is loaded with soft clothing and the lid is closed on it.
The moulding flash around the rim and handle recess is trimmed. This step is where the perceived quality of the product is decided, because the flash is the first thing a customer touches. Any edge a fingernail can catch will read as an unfinished product, regardless of how sound the structure is.
The handle is either moulded into the shell as a recess, or cut through and fitted as a separate part. A moulded handle has no root to fail. A cut-out handle introduces the single most common failure point in this category: the crack that starts at the handle root and spreads into the short end wall.
Lid, hinge or clip, and any wheel set are fitted. The lid must seat without forcing, and must retain the load when the box is moved with the lid closed. A lid that rides up during transport is a packaging problem, not a product problem, but it is caused by the lid fit and should be fixed at assembly.
An expandable or fabric-bodied unit follows a different sequence, and the two routes share almost nothing in common beyond the packing stage. This matters for buyers because a supplier strong in moulding is often weak in sewing, and the reverse is also true.
Metal tube is cut to length, and the corners are joined. The join method — welded, riveted, or a folded and crimped corner — determines the structural limit of the product. A welded joint with a filled and ground corner is the strongest. A crimped corner is faster and cheaper, and it is where a fabric-bodied unit develops a permanent lean when it is dragged across a floor by its handle.

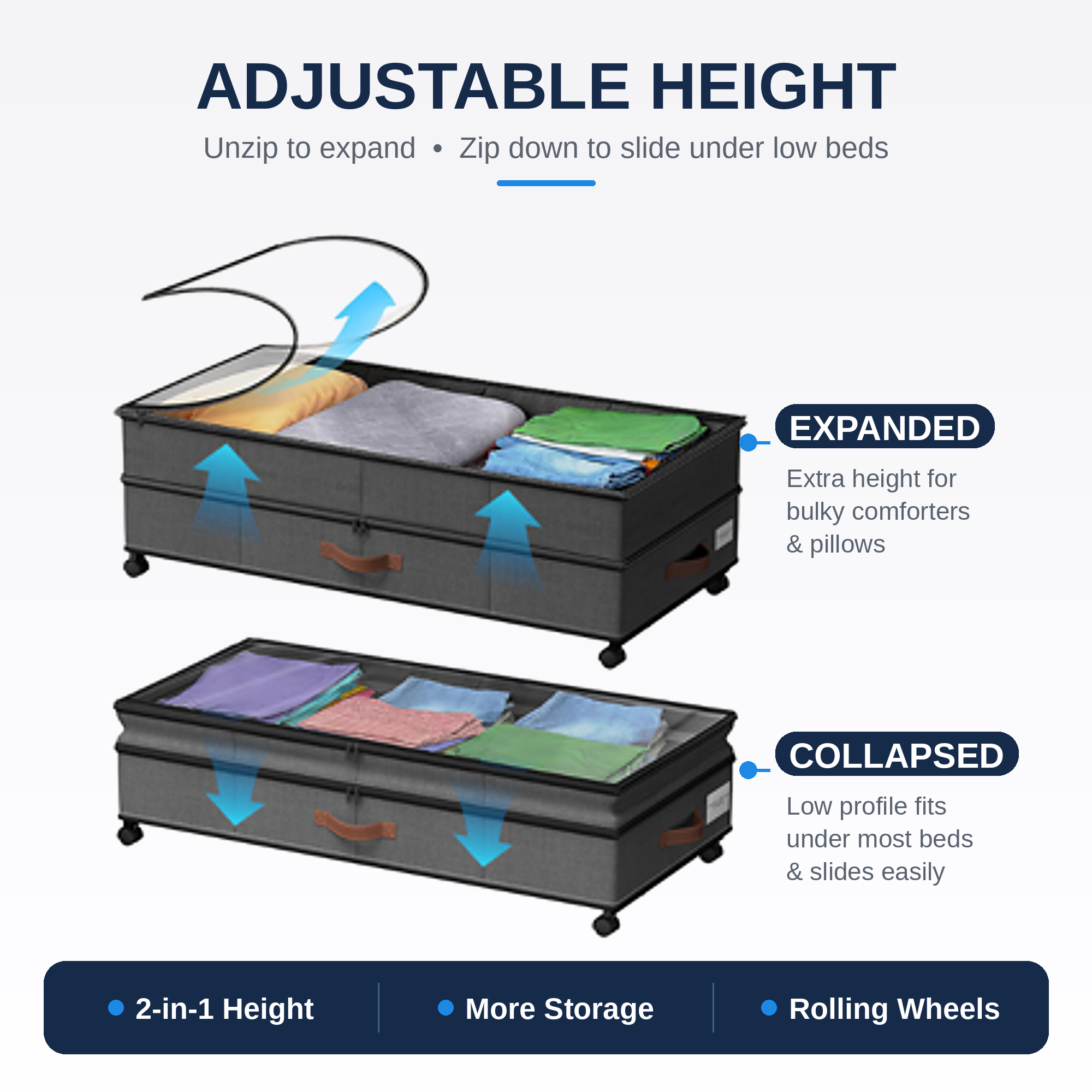

The body panels are cut. For an adjustable-height unit, the panel must be cut with enough allowance to accommodate the extension without slack at the base or strain at the seam when the frame is fully extended. This is a pattern-drafting decision, and it is why a new expandable model costs more to develop than a rigid one.
Panels are stitched into a body, and hems are finished on the openings. The seam at the top edge carries the entire load when the container is lifted by its handles, so the stitch specification — thread type, stitch length, and the number of layers at the stress point — belongs in the purchase order. This is the cheapest quality control available in the category and the most frequently omitted.
The body is fitted to the frame, the adjustment mechanism is fitted, and the casters are attached. For a wheeled unit, this is where the load rating is set. A caster rated below the filled weight of the container will not fail on the day it arrives — it fails in month two, usually as a bent swivel that makes the unit track to one side.
Under-bed storage is a bulky item in a small box, which makes packing the decisive cost factor. Two routes are used, and they are mutually exclusive within a model.
Rigid shells are packed flat, nested inside one another with the lid between each unit. A set of three occupies only slightly more carton space than a single box plus an allowance. Because the product is moulded, the nesting allowance is tight and predictable, which makes the carton footprint reliable to plan against.
A fabric-bodied unit is folded flat with the frame either nested inside it or packed alongside. This gives a much better freight ratio than the rigid route but requires the folding method to be specified, because a unit folded in a way that creases the corner joint will arrive bent. The folding instruction is part of the packing specification, not a packing department preference.
Quantity per carton
Carton dimensions, length by width by height
Gross and net weight
Whether the unit ships flat and nested, or folded
Inner protection, polybag, tissue or none
Whether a master carton or pallet follows, and the pallet dimensions
Check the carton dimensions against your own warehouse shelving before committing. A flat-nested rigid carton is a straightforward rectangle and is easy to plan for. A folded fabric unit can produce a carton that is long and shallow, which is efficient on a pallet but frequently will not fit an existing shelf run.
The handle root is where rigid units fail. The shell itself does not usually fail. Where failures occur, they cluster at a cut-out handle and trace to one of three causes: a thin wall at the handle opening, a stress concentration left by the trimming step, or a load rating that was assumed rather than tested. A moulded-in handle recess removes this failure mode entirely, and for a low-profile box sold for heavy soft goods it is worth specifying.
Loose fabric at the base is a pattern problem, not a sewing problem. When an adjustable unit slumps at the base, sewing more tightly is the wrong fix. The panel was cut too close to the extended frame dimension, and no seam allowance will compensate. The correct fix is a new pattern with a deeper allowance, and it has to be caught at the first-off stage.
Sample approval is not the same as production approval. This is a process gap rather than a quality complaint. If the approved sample was pulled from existing stock and the bulk order is a new colour or a new fabric, the production unit will look similar but not identical. Whenever anything is new, request that production starts from a freshly built first-off.
Wheel swivel failure appears late. A caster that is under-rated for a filled container usually works perfectly through the pre-shipment inspection, because the inspection is done on an empty unit. The failure shows up in a customer bedroom in the second or third month. Specify the caster load rating against the filled weight, and specify the floor type the product is intended for.
Production timing, realistically. Sampling takes 7 to 10 days when the pattern exists and 15 to 20 days for a new pattern with a printed body, because artwork must be laid out against the seam positions. Bulk production runs 35 to 40 days after written sample approval. An adjustable-height mechanism adds roughly 5 to 7 days for the sliding-joint assembly. Custom fabric colour matching adds 7 to 10 days for the dye lot. Plan 90 to 105 days from first contact to delivery for a standard line, and 120 days or more for a fully new design with custom fabric and printing.
Loose clothing in a living room context is a merchandising point. Buyers building a bedroom storage collection often place the product next to a sofa or in a sitting room for photography, and a rigid unit with a moulded lid photographs well against a soft furnishing background while an open fabric unit does not. This is worth deciding before the sample, not after, because it determines whether the lid is part of the packed set.
Two contents decide whether a unit needs a rigid or a soft body. A shoe storage box use case points to a rigid shell, because footwear keeps its shape, needs dust protection and a surface that can be wiped when the unit is opened in a hallway rather than a bedroom. A blanket storage box use case points the other way, because a folded duvet compresses and spreads, and a soft body accepts that pressure without bowing the walls. The same product page should say which it is, because a customer who buys a soft unit for shoes discovers the problem the first time the box is dragged out.
Four checkpoints cover most of what matters in this category:
First-off inspection — one unit built from the new pattern or new mould, checked against the technical drawing and the dimensional report before the run proceeds.
In-line inspection — a percentage of units checked during assembly for seam quality, corner squareness, frame alignment and flash trimming.
Pre-packing inspection — finished units checked for handle security, lid fit, wheel mounting, dimensions and colour against the approved swatch.
Pre-shipment inspection — random AQL sampling across the packed cartons, covering quantity, carton marks, packing method and a visual re-check of the product in its folded or nested state.
For a buyer who has not run inspection on this category before, the pre-packing checkpoint delivers the highest return, because it catches a loose base panel or a mis-set wheel while the units are still fixable within the production window.
An under-bed storage purchase order should state, at minimum:
Model reference and the production route: rigid shell, frame with cloth body, or soft fabric
External dimensions with the acceptable dimensional tolerance
Resin grade and wall thickness for a rigid shell, or frame material and tube diameter for a frame body
Body fabric composition and the approved physical colour swatch reference
Height specification: fixed value, or the adjustment range and the number of positions
Handle type, and the reinforcement specification at the handle root
Wheel specification including caster type and load rating against filled weight
Stitch specification: thread type, stitch length and number of layers at the top seam
Folding or nesting method for packing
MOQ per model per colour
Incoterm and port of loading
Inspection standard and the AQL level to be applied
The items most often left open — handle reinforcement, stitch specification, packing method — are exactly the three that generate the returns.
1. How long does it take to manufacture under bed storage boxes?
A stock-pattern sample takes 7 to 10 days, and a new pattern with a printed body takes 15 to 20 days because artwork must be laid out against the seam positions. Bulk production runs 35 to 40 days after written sample approval. An adjustable-height mechanism adds roughly 5 to 7 days, and a custom fabric colour adds 7 to 10 days for the dye lot. A standard line typically reaches delivery in 90 to 105 days from first contact.
2. What quality checks should a buyer request for under bed storage?
Request four checkpoints: a first-off check against the technical drawing, an in-line check during assembly, a pre-packing check covering handle security, lid fit and wheel mounting, and a pre-shipment AQL inspection across the packed cartons. The pre-packing checkpoint is the most valuable, because it catches problems while they are still correctable within the production window.
3. How are under bed storage containers packed for shipping?
A rigid unit is packed flat and nested, with the lid between each unit, so three units occupy only slightly more carton space than one plus an allowance. A fabric or frame unit is folded flat, which gives a better freight ratio but requires the folding method to be specified, because a unit folded in the wrong way will arrive with a bent corner joint. Confirm pieces per carton, carton dimensions and gross weight in the purchase order.
4. Are under bed storage boxes checked before shipment?
They should be, and the purchase order should state the standard. A pre-shipment inspection samples randomly across the packed cartons at an agreed AQL level and covers quantity, carton marks, packing method and a visual re-check of the product. One point worth specifying explicitly: a wheeled unit should be inspected with its load rating checked against the filled weight, because an empty unit will pass a test the loaded unit would fail.
5. Can under bed storage be produced with custom fabric and printing?
Yes, and it is a common request for private label programmes. Printed bodies need a longer sample stage than plain ones, because artwork has to be laid out against the seam positions rather than applied to a flat panel. Expect 15 to 20 days for a printed sample and 7 to 10 additional days in bulk production for a custom fabric colour to be matched and approved against a physical swatch from the actual production lot.
